Refrigerator Compressor
R12 Series COMPRESSOR PERFORMANCE TABLE
Fully-closed motor-driven piston and connecting rod compressor. Good starting property, high reliability, low noise and long service life. Adopt PTC starter with overload protector. Have selective working efficiency, which enables the user to select operation with or without capacitor. Can be applied to household refrigerator with the volume being 80L to 380L.

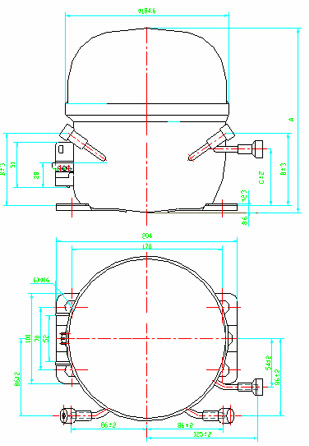

| BRAND | SERIES | MODE | DISPLAC-EMENT(cm3) | CAPACITY(w) | COP | COOLING TYPE | MOTOR TYPE | Height（mm) | |||
| A | B | C | D | ||||||||
| HUAGUANG | Q Series 220v/50Hz | QD43A | 4.33 | 96 | 0.93 | ST | RSIR | 188.8 | 80 | 62.2 | |
| QD51B | 5.10 | 123 | 1.03 | ST | RSIR | 188.8 | 80 | 62.2 | |||
| QD51C | 5.10 | 138 | 1.2 | ST | RSIR | 188.8 | 80 | 62.2 | |||
| QD57A | 5.65 | 139 | 1.01 | ST | RSIR | 188.8 | 80 | 62.2 | |||
| QD57B | 5.65 | 139 | 1.09 | ST | RSIR | 188.8 | 80 | 62.2 | |||
| QD57C | 5.65 | 150 | 1.18 | ST | RSIR | 188.8 | 80 | 62. | |||
| QD66A | 6.55 | 157 | 1.01 | ST | RSIR | 188.8 | 80 | 62.2 | |||
| QD66B | 6.55 | 157 | 1.11 | ST | RSIR | 199.6 | 80 | 62.2 | |||
| QD66C | 6.55 | 165 | 1.2 | ST | RSIR | 199.6 | 80 | 62.2 | |||
| QD77A | 7.69 | 185 | 1.05 | ST | RSIR | 208.6 | 80 | 62.2 | |||
| QD77B | 7.69 | 185 | 1.1 | ST | RSIR | 208.6 | 80 | 62.2 | |||
| QD91B | 9.1 | 215 | 1.1 | ST/OC | RSIR | 208.6/214.6 | 80/86 | 62.2/68.2 | |||
| QD110 | 10.86 | 265 | 1.1 | ST/OC | RSIR | 208.6/214.6 | 80/86 | 62.2/68.2 | |||
| Q Series 110V/60Hz | QD43T6 | 4.33 | 120 | 1 | ST | RSIR | 188.8 | 80 | 62 | ||
| QD57T6 | 5.65 | 162 | 1.09 | ST | RSIR | 188.8 | 80 | 62 | |||
| QD66T6 | 6.55 | 185 | 1.06 | ST | RSIR | 188.8 | 80 | 62 | |||
| QD77T6 | 7.69 | 220 | 1.09 | ST | RSIR | 208.6 | 86 | 68.2 | |||
| QD91T6 | 9.10 | 265 | 1.14 | ST/OC | CSIR | 214.6 | 86 | 68.2 | |||
